SPM Special Machine

OPS ON SHORE POWER SUPPLIER

The electrical power system (OPS) (On shore Power Supply) electrically connects the ship moored in the port with a medium voltage electrical station (10/100 KV) located near the port
.

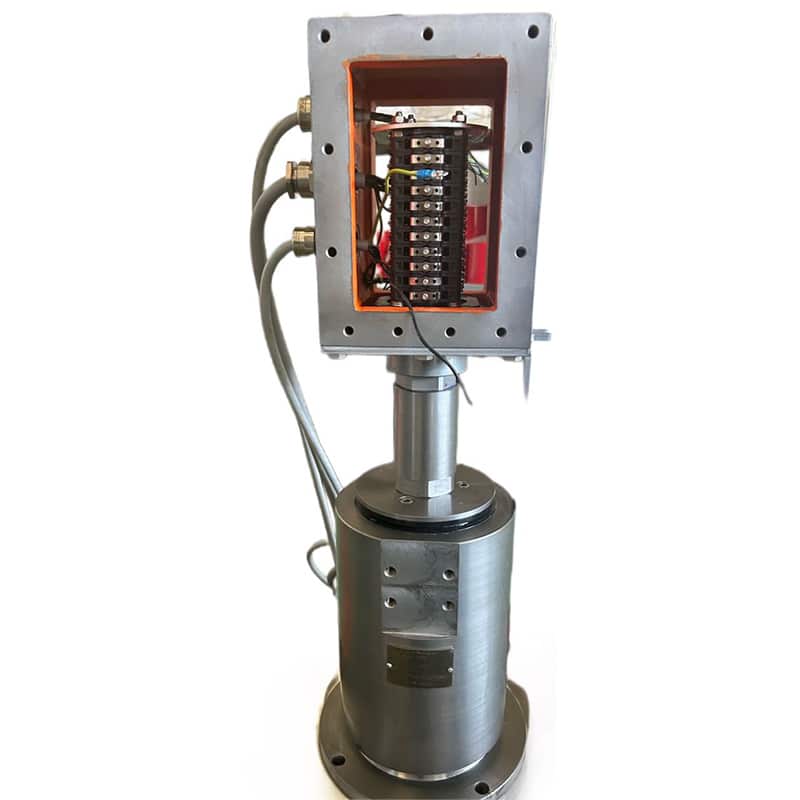

SREX150 SERIES EXPLOSION PROOF

SLIP RING EXPLOSION PROOF
ATEX SCHEME /IECEx SCHEME
In max =150A 680VCa

SREX300 SLIP RING SERIES EXPLOSION PROOF

Inmax = 300A V= 690 VCA
ATEX II 2G Ex db IIB T4 Gb
IECEx Ex db IIB T4 Gb

SREX506 SLIP RING SERIES EXPLOSION PROOF

Inmax = 638A Vmax= 6 KVCA
ATEX II 2G Ex db IIB T4 Gb
IECEx Ex db IIB T4 Gb

SREX690 POEW SLI RING EXPLOSION PROOF

Imax =1500A Vmax 24VCA
ATEX II 2G EX db II B T4 Gb
IECEx db IIB T4 Gb

SCREX SPRING CABLE REEL HAZARD AREA

Diameter cable max 20mm
Run =30 m
type A
ATEX II 2G Ex h IIB T4 Gb

SCREX SPRING CABLE REEL HAZARD AREA

Diameter cable max 20mm
Run =30 m
type B (crane)
ATEX II 2G Ex h IIB T4 Gb

SCRKEX MOTOR SPRING CABLE HAZARD AREA

Diameter cable max 35
Run =60 m
type C
ATEX II 2G Ex h IIB T4 Gb

SHREX SPRING HOSE REEL HAZARD AREA

SHREX SPRING HOSE REEL HAZARD AREA

MCREX_SERIES

MCREX SERIES FOR CABLE 15mm /35mm
run max 120m

MCREX VERTICAL MOTOR CABLE EXPLOSION PROOF

Diameter cable max 20 V=06/1K
Run =60 m
type vertical
ATEX II 2G Ex h IIB T4 Gb

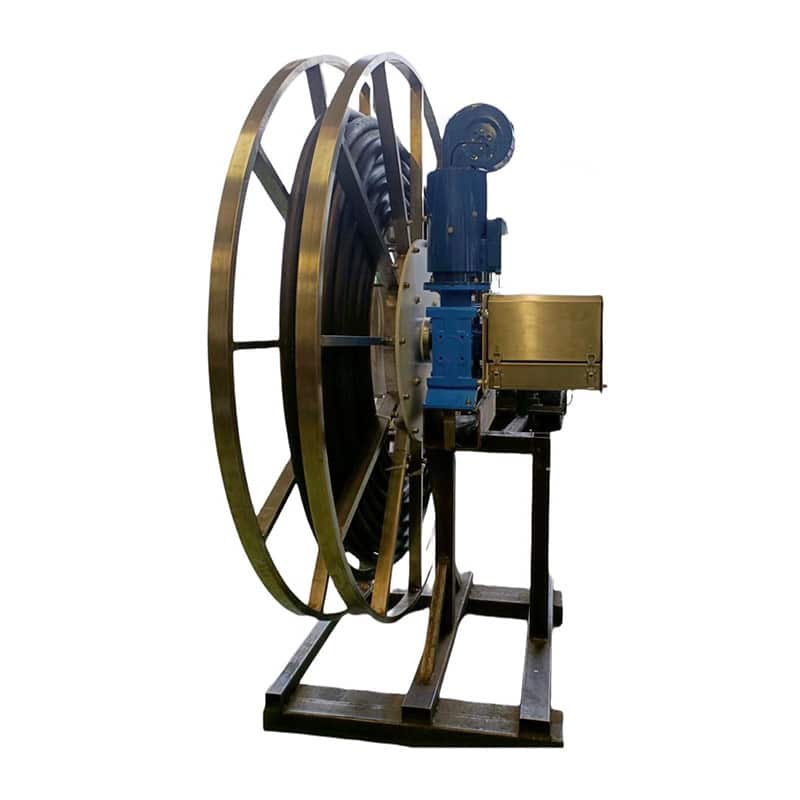

MCREX POWER MOTOR CABLE REEL EXPLOSION PROOF

Diameter cable max 60mm Vmax = 24KV
Run =250 m
type Horizontal
ATEX II 2G Ex h IIB T4 Gb

MCREXHV MOTOR CABLE REEL Ex MINING MEDIUM VOLTAGE

SLIP RING
VOLTAGE CLASS 12/17.5/24 KV
In max = 800 A
ATEX I M2

CT100EX SERIES CABLE REEL

CABLE TROLLEY HAZARD AREA
II 2G EX h IIC T4 Gb
II 2D Exh IIIC T135C° Db
IPE 70 - 160
PIPE 60-70

SR500 POWER SLIP RING MARINE

SLIP RING
In = 800 A
VCA max =1000A
COSTRUCTION AISI 316L , IP66

SR400 POWER SLIP RING MARINE

SLIP RING
In = 500 A
VCA max =1000A
COSTRUCTION AISI 316L , IP66
DNV GL Standard for Certification No. 0377 “Offshore lifting appliances”

SR320 POWER SLIP RING MARINE

SLIP RING
In = 350 A
VCA max =680 VCA
COSTRUCTION AISI 316L , IP66

SR250 POWER SLIP RING MARINE

SLIP RING
In = 250 A
VCA max =1000A
COSTRUCTION AISI 316L , IP66

SR200 POWER SLIP RING MARINE

SLIP RING
In = 200 A
VCA max =1000A
COSTRUCTION AISI 316L , IP66

SR150 POWER SLIP RING MARINE

SLIP RING
In = 150 A
VCA max =1000A
COSTRUCTION AISI 316L , IP66

SR135 POWER SLIP RING IP67

SLIP RING
In =40 A
VCA max =1000A
CONSTRUCTION :
AISI 316L , ALUMINIUM/POLYCARBONATE
IP67

SR130 POWER SLIP RING IP67 AISI 316L

SCR SPRING CABLE REEL

VERTICAL or HORIZONTAL APPLICATION
SERIES IP 65
In = 10- 150A

SCRL SPRING CABLE REEL AISI 316 IP67

VERTICAL or HORIZONTAL APPLICATION
SERIES IP 67
In = 800A

COSTRUCTION AISI 316L

SCRk MOTOR SPRING CABLE REEL

VERTICAL or HORIZONTAL APPLICATION
SERIES IP 66
In =20- 250A
DIAMETER MAX CABLE 50 mm
COSTRUCTION STEEL PATING

MCR MOTOR CABLE REEL HORIZONTAL

HORIZONTAL APPLICATION
SERIES IP 65
In =20- 200A
DIAMETER MAX CABLE 35 mm
COSTRUCTION STEEL AISI 304

MCR MOTOR CABLE REEL VERTICAL

VERTICAL APPLICATION
SERIES IP 65
In =20- 200A
DIAMETER MAX CABLE 35 mm
COSTRUCTION STEEL AISI 304

MCRHV MOTOR CABLE REEL MEDIUM VOLTAGE

Diameter cable max 60mm
Vmax = 12/17.5/24KV
Run =250 m
type Horizontal

MCRHV MOTOR CABLE REEL MEDIUM VOLTAGE MINING

APPLICATION MINING
Diameter cable max 60mm
Vmax = 12/17.5/24KV
Run =250 m
type Horizontal

MHCR MOTOR HYDRAULIC CABLE REEL VERTICAL

VERTICAL APPLICATION
MOTOR HYDRAULIC
SLIP RING IN= 200A VCA 1000v
DIAMETER MAX CABLE 50mm

MHCR MOTOR HYDRAULIC CABLE REEL HORIZONTA

HORIZONTAL APPLICATION
MOTOR HYDRAULIC
SLIP RING IN= 200A VCA 1000v
DIAMETER MAX CABLE 50mm

CT CABLE TROLLEY SYSTEM

CABLE TROLLEY
IPE 70 - 160
PIPE 60-70

BIDIRETIONAL CABLE GUIDE

APPLICATION
-HAZARD ZONE
-MARINE
-INDUSTRIAL

MDC CABLE FEED POINT

APPLICATION
-HAZARD ZONE
-MARINE
-INDUSTRIAL

CM CABLE SOCKS

MATERIAL
STEEL /STAINLESS STEEL

QG CABLE GUIDE

HVJBOX JUNCTION BOXES ATEX EX e

junction boxes are ATEX-certified for installation in potentially explosive environments.

SPECIAL CABLE

SRFORJ Fiber optical electrical slip ring

Fiber channel :
1 channels
2 channel
multiplex channel
